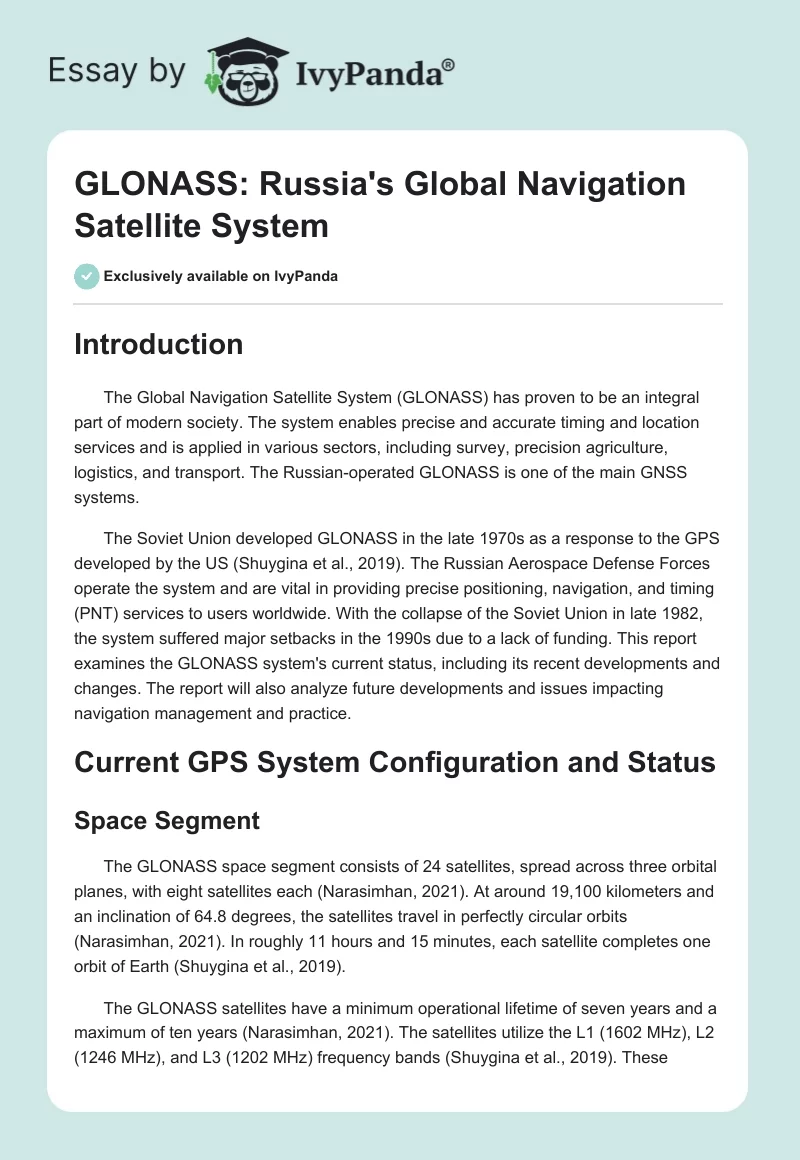

Introduction
The Global Navigation Satellite System (GLONASS) has proven to be an integral part of modern society. The system enables precise and accurate timing and location services and is applied in various sectors, including survey, precision agriculture, logistics, and transport. The Russian-operated GLONASS is one of the main GNSS systems.
The Soviet Union developed GLONASS in the late 1970s as a response to the GPS developed by the US (Shuygina et al., 2019). The Russian Aerospace Defense Forces operate the system and are vital in providing precise positioning, navigation, and timing (PNT) services to users worldwide. With the collapse of the Soviet Union in late 1982, the system suffered major setbacks in the 1990s due to a lack of funding. This report examines the GLONASS system’s current status, including its recent developments and changes. The report will also analyze future developments and issues impacting navigation management and practice.
Current GPS System Configuration and Status
Space Segment
The GLONASS space segment consists of 24 satellites, spread across three orbital planes, with eight satellites each (Narasimhan, 2021). At around 19,100 kilometers and an inclination of 64.8 degrees, the satellites travel in perfectly circular orbits (Narasimhan, 2021). In roughly 11 hours and 15 minutes, each satellite completes one orbit of Earth (Shuygina et al., 2019).
The GLONASS satellites have a minimum operational lifetime of seven years and a maximum of ten years (Narasimhan, 2021). The satellites utilize the L1 (1602 MHz), L2 (1246 MHz), and L3 (1202 MHz) frequency bands (Shuygina et al., 2019). These satellites broadcast timing and location data to ground stations using atomic clocks and navigation payloads.

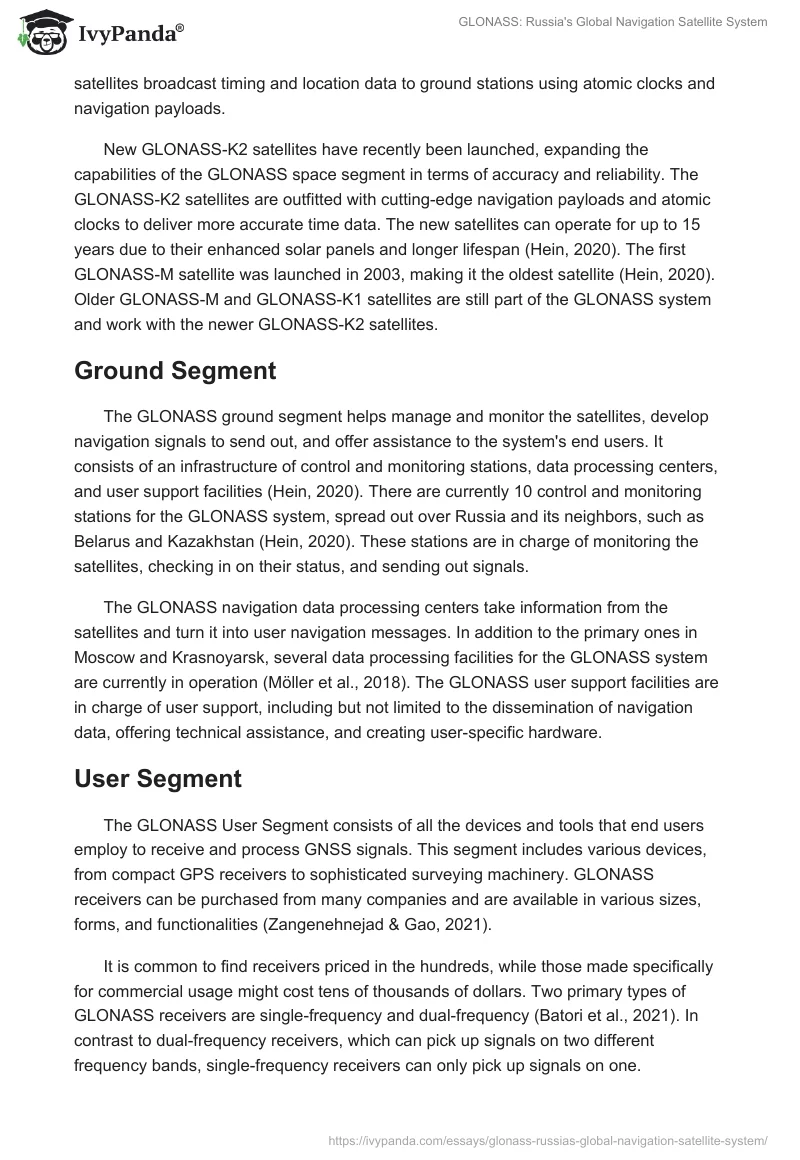

New GLONASS-K2 satellites have recently been launched, expanding the capabilities of the GLONASS space segment in terms of accuracy and reliability. The GLONASS-K2 satellites are outfitted with cutting-edge navigation payloads and atomic clocks to deliver more accurate time data. The new satellites can operate for up to 15 years due to their enhanced solar panels and longer lifespan (Hein, 2020). The first GLONASS-M satellite was launched in 2003, making it the oldest satellite (Hein, 2020). Older GLONASS-M and GLONASS-K1 satellites are still part of the GLONASS system and work with the newer GLONASS-K2 satellites.
Ground Segment
The GLONASS ground segment helps manage and monitor the satellites, develop navigation signals to send out, and offer assistance to the system’s end users. It consists of an infrastructure of control and monitoring stations, data processing centers, and user support facilities (Hein, 2020). There are currently 10 control and monitoring stations for the GLONASS system, spread out over Russia and its neighbors, such as Belarus and Kazakhstan (Hein, 2020). These stations are in charge of monitoring the satellites, checking in on their status, and sending out signals.
The GLONASS navigation data processing centers take information from the satellites and turn it into user navigation messages. In addition to the primary ones in Moscow and Krasnoyarsk, several data processing facilities for the GLONASS system are currently in operation (Möller et al., 2018). The GLONASS user support facilities are in charge of user support, including but not limited to the dissemination of navigation data, offering technical assistance, and creating user-specific hardware.
User Segment
The GLONASS User Segment consists of all the devices and tools that end users employ to receive and process GNSS signals. This segment includes various devices, from compact GPS receivers to sophisticated surveying machinery. GLONASS receivers can be purchased from many companies and are available in various sizes, forms, and functionalities (Zangenehnejad & Gao, 2021).
It is common to find receivers priced in the hundreds, while those made specifically for commercial usage might cost tens of thousands of dollars. Two primary types of GLONASS receivers are single-frequency and dual-frequency (Batori et al., 2021). In contrast to dual-frequency receivers, which can pick up signals on two different frequency bands, single-frequency receivers can only pick up signals on one.
GLONASS receivers are used in many fields, from transportation and mapping to surveying and agriculture. They are most widely used in the transportation industry, facilitating fleet management, navigation, and vehicle monitoring (Batori et al., 2021). Farmers can employ GLONASS receivers for precision farming and crop management to maximize yields while decreasing the application of pesticides and fertilizers.
GLONASS’s compatibility with other GNSS systems like GPS and Galileo is a significant advantage (Pan et al., 2019). This means that GLONASS receivers may pick up signals from various GNSS systems, leading to more precise and reliable location and navigation data.
Recent Developments and Changes
The GLONASS system has undergone many modifications and enhancements over the past twelve months. For instance, technological progress in recent years has encouraged the development of a multiplicity of new satellites designed to improve the constellation and replace the deteriorating network of older satellites (Tomaszewska et al., 2019). A new generation of GLONASS-K satellites, which were launched in December 2020, vastly increased the precision and consistency of satellite navigation signals (Mu, 2021).
Similarly, the first updated GLONASS-K2 series satellite was deployed in March 2021. These explosions are primarily responsible for the system’s improved performance and will ensure its continued existence for the foreseeable future. Upgrades to the ground segment have been implemented in addition to satellite launches to improve the performance and reliability of the GLONASS system. New monitoring and control equipment was installed at the main control center in Moscow, allowing for more efficient and accurate satellite tracking and better system management (Galotti, 2019). New data analysis and processing software have also been developed alongside advancements in ground-based navigation systems.
As the number of GNSS systems available grows, so does the importance of ensuring they can communicate with one another. GLONASS and other GNSS systems like GPS and Galileo have undergone increased integration in recent years (Tomaszewska et al., 2019). In 2018, the first demonstration of simultaneous GPS and GLONASS time synchronization was witnessed, which bodes well for increased precision and dependability in time-based applications.
Future Developments and Issues
Integration with BeiDou and Galileo
Plans for GLONASS include integrating it into other global navigation satellite systems (GNSS), such as the Chinese BeiDou and the European Galileo. BeiDou currently has 35 satellites in orbit. Users in the Asia-Pacific region can take advantage of its location and navigation services, and by 2024, the service’s reach is expected to extend to every corner of the planet (Pan et al., 2019).
Positioning and navigation services in the Asia-Pacific region may benefit from the combination of GLONASS and BeiDou regarding accuracy, availability, and reliability (Su et al., 2019). New technologies and standards must be developed to ensure that GLONASS and BeiDou can operate jointly without any hitches. One such method employs multi-constellation receivers, which can simultaneously pick up signals from several global navigation satellite systems.
Transition to GLONASS-K2 Satellites
Compared to the current GLONASS-M and GLONASS-K1 satellites, the GLONASS-K2 satellites offer enhanced functionality and performance. Longer operational lifetime, increased signal strength, and compatibility with emerging signals like L3 will all contribute to greater precision in locating provided by the GLONASS-K2 constellation of satellites by 2023 (Bhuiyan et al., 2022).
Thanks to the CDMA signal format, which will be supported by the GLONASS-K2 satellites, the GLONASS system will be more secure and resistant to interference and jamming (Karutin et al., 2020). In addition to enhancing the precision and accessibility of GNSS signals for end users, the CDMA signal format will permit better compatibility and interoperability with other GNSS systems.
Cybersecurity Concerns
GNSS systems like GLONASS face the same cybersecurity threats as any other technologically based system. The possibility of signal jamming or spoofing is a major worry with GLONASS. To disrupt a GNSS signal, one can “jam” it by sending out a stronger signal on the same frequency (Oruc et al., 2022). In contrast, spoofing entails the generation of a false signal that imitates the GNSS signal, tricking receivers into delivering erroneous location data.
The effects of jamming and spoofing can be devastating, especially in mission-critical settings like air and sea travel. GLONASS and other GNSS systems aim to add protections in response to these threats. The L3 signal is the system’s secondary, encrypted signal meant to be used if the primary signals are ever compromised by jamming or spoofing.
Impact on Navigation Management and Practice
The future developments discussed above will significantly impact navigation management and practice. There will be numerous advantages for navigation management and practice as a result of integrating the GLONASS system with other GNSS systems. In the first place, it will make location and navigation services more widely accessible, especially in regions with poor signal reception from a single GNSS system (Su et al., 2019).
With the ability to receive signals from different constellations, accuracy, availability, and reliability will all improve for end users. Similarly, thanks to the integration, users will be able to take advantage of the best features of each GNSS by 2025 (Su et al., 2019). While the GPS is well-known for its worldwide availability and reliability, the GLONASS system is lauded for its pinpoint precision and rock-solid reliability.
The transition to GLONASS-K2 satellites will have a significant impact on navigation management and practice. In comparison to the current GLONASS-M satellites, the new ones will be more accurate, last longer, and have better signal quality. They will be more compatible with other GNSS systems because they will support more signals and frequencies (Karutin et al., 2020).
However, major upgrades to ground control infrastructure and signal processing algorithms are also necessary for the switch to GLONASS-K2 satellites. To guarantee a seamless transition, satellite producers, network administrators, and final consumers will need to work closely together.
The GLONASS system is susceptible to cyber threats such as jamming, spoofing, and cyberattacks, making cybersecurity a top priority. Because these dangers can interfere with or damage the system’s precision, availability, and dependability, they pose a serious risk to navigation management and practice.
In response to these worries, constant work is being done to strengthen the safety of GNSS transmissions (Oruc et al., 2022). This involves creating new standards and technology, like secure communication channels and authentication methods (Wang et al., 2020). Efforts are also being made to enhance situational awareness and detection capabilities, which will help system operators spot and counteract threats in real time.
Conclusion
In conclusion, the GLONASS system is an essential GNSS system that serves users all over the world with navigation and locating services. The system includes the satellite constellation, the ground segment, and the user segment. Launching new satellites and improving the ground segment are two recent advancements.
Integration with other GNSS systems, migration to GLONASS-K2 satellites, and addressing cybersecurity issues are all future developments. As a result of these advancements and issues, it will be vital for stakeholders to keep informed and adapt to changes in the GNSS landscape, which will affect navigation management and practice.
Reference List
Batori, E., Almat, N., Affolderbach, C. and Mileti, G., 2021. GNSS-grade space atomic frequency standards: Current status and ongoing developments. Advances in Space Research, 68(12), pp.4723-4733.
Bhuiyan, M.Z.H., Honkala, S., Söderholm, S. and Kuusniemi, H., 2022. GLONASS L1OF Receiver Processing. GNSS Software Receivers, p.126.
Galotti, V.P., 2019. Navigation. In the Future Air Navigation System (FANS) (pp. 92-139). Routledge.
Hein, G.W., 2020. Status, perspectives, and trends of satellite navigation. Satellite Navigation, 1(1), p.22.
Karutin, S., Testoedov, N., Tyulin, A. and Bolkunov, A., 2020. GLONASS. Position, Navigation, and Timing Technologies in the 21st Century: Integrated Satellite Navigation, Sensor Systems, and Civil Applications, 1, pp.87-103.
Möller, G., Umnig, E. and Weber, R., 2018. The Austrian near real-time multi-GNSS troposphere products-current status and plans. In EGU General Assembly Conference Abstracts (p. 15011).
Mu, X., Beijing Future Navigation Technology Co Ltd, 2021. Fast and Precise Positioning Method and System. U.S. Patent Application 15/734,446.
Narasimhan, G., 2021. Satellite Navigation. Precision Positioning with Commercial Smartphones in Urban Environments, pp.109-133.
Oruc, A., Gkioulos, V. and Katsikas, S., 2022. Towards a Cyber-Physical Range for the Integrated Navigation System (INS). Journal of Marine Science and Engineering, 10(1), p.107.
Pan, L., Zhang, X., Li, X., Li, X., Lu, C., Liu, J., and Wang, Q., 2019. Satellite availability and point positioning accuracy evaluation on a global scale for integration of GPS, GLONASS, BeiDou, and Galileo. Advances in space research, 63(9), pp.2696-2710.
Shuygina, N., Ivanov, D., Ipatov, A., Gayazov, I., Marshalov, D., Melnikov, A., Kurdubov, S., Vasilyev, M., Ilin, G., Skurikhina, E., and Surkis, I., 2019. Russian VLBI network “Quasar”: Current status and outlook. Geodesy and Geodynamics, 10(2), pp.150-156.
Su, K., Jin, S. and Ge, Y., 2019. Rapid displacement determination with a stand-alone multi-GNSS receiver: GPS, Beidou, GLONASS, and Galileo. GPS solutions, 23, pp.1-12.
Tomaszewska, J., Woch, M., Krzyszkowski, J. and Zieja, M., 2019. Comparative analysis of vitality of GPS and GLONASS satellite systems. Transportation Research Procedia, 43, pp.57-62.
Wang, N., Li, Z., Duan, B., Hugentobler, U. and Wang, L., 2020. GPS and GLONASS observable-specific code bias estimation: comparison of solutions from the IGS and MGEX networks. Journal of Geodesy, 94, pp.1-15.
Zangenehnejad, F. and Gao, Y., 2021. GNSS smartphones positioning: Advances, challenges, opportunities, and future perspectives. Satellite navigation, 2, pp.1-23.
